1 Bedroom House Plan 1100A

Name: 1 Bedroom House Plan 1100A
Price: 69.99 USD

A modern 1 bedroom house plan with a kitchen, a bedroom, a bath, in addition to a spacious living room.

The front porch gives you a nice space to relax in the evening and mornings.

These are the spaces you get: 1 Bedroom, Living Room, Kitchen, Front Porch, 1 Bath.

Bedrooms
- 1 Bedroom
Style
- Contemporary
Roof Type
- Hidden Pitched Roof
Storeys
- 1 Storey
Size
- 0 - 50 sqm

Price

$ 69.99

Bedrooms: 1 Bedroom

Style: Contemporary

Roof Type: Hidden Pitched Roof

Storeys: 1 Storey

Size: 0 - 50 sqm

Key House Plan Features

Bedrooms

4 Bedrooms

Recommended Plot Size

10 x 10 Meters 50 x 50 Feet

Total House Area

100 Square Meters

House Length

10 Meters

House Width

8 Meters

Bath

4 Baths1 Visitor WC

Roof Style

Pitched Roof

Storeys

1 Storey

Full Specifications and Features of this House Plan

House Style

Contemporary Hidden Roof

House Dimensions

Width: 8.3 x 6.3 Meters

Depth: 6.3 Meters

Total House Area

49.7 Square Meters

Recommended Plot Size

12 x 10 meters or

39 x 32 Feet

Roof Features

Hidden Pitched Roof

Parapet Wall with Concrete Coping

Galvanized sheet metal roofing

Low pitch: 5 to 7 Degrees Pitch

Internal Concrete Gutter System

Waterproofed Gutter System

Front Porch

A large front porch

Entry Foyer

No Entry foyer.

Direct Entry into the living room

Living Room

Dedicated TV Area

Large and Wide Windows for Natural Light

Generous Sitting Space

Designed for comfrort an relaxation

Dining

No dedicated Dining Area

Kitchen

Worktops

Base Cabinets

Wall Cabinets

Wall Shelves

Gas Cooker area

Fridge

Sink Area

Large window

Pantry

No dedicated walk in pantry

Comes with cabinet pantry

Laundry/ Utility

No dedicated walk laundry area

Comes with cabinet pantry

Kitchen Porch

No Kitchen Porch

Passage

A passage links the bedroom, bath and the Kitchen

Visitor's Cloak/ Powder Room

1 WC is shared by the whole house and bedroom

Master Bedroom

1 Bedroom

Not ensuite

Built in Wardrobe

Spacious

Secondary Bedrooms

No secondary Bedroom

Garage

No Garage

Other Features

Efficient Circulation system

Structure

Reinforced Concrete Columns

Natural Stone strip foundation

Reinforced concrete strip foundation footing

Reinforced concrete ground floor slab

Masonry walling

RC beam

Treated wood roof trusses

Lighting and Electricals

Ceiling Lights

Wall Lights

Feature lighting in living room

Fluorescent ceiling light in kitchen

Waterproof external wall lights.

Multiple power outlets per room

Dedicated TV outlet

Heavy duty power outlets in kitchen and laundry

Two way electrical light switches in bedrooms

Two way light switches in living room,. kitchen and dining

Plumbing

Hot and cold water system

Solar water heater

Robust Septic system

Cold water storage tank

Inspection chambers

Materials and Finishes

Non slip ceramic floor tiles in porches

Matt Ceramic floor tiles

1st grade wall paint

Gypsum celing board

Non slip ceramic tiles in wet areas

Polished Ceramic wall tiles in kitchen

Glossy ceramic wall tiles in bath and other wet areas

Machine polished terrazzo in Garage

What's Included in this House Plan Drawing Set?

The Following are the Included Construction Set Drawings for Building your Home.

1. Cover Sheet

2. Floor Plan

3. Foundation Plan

4. Roof Plan

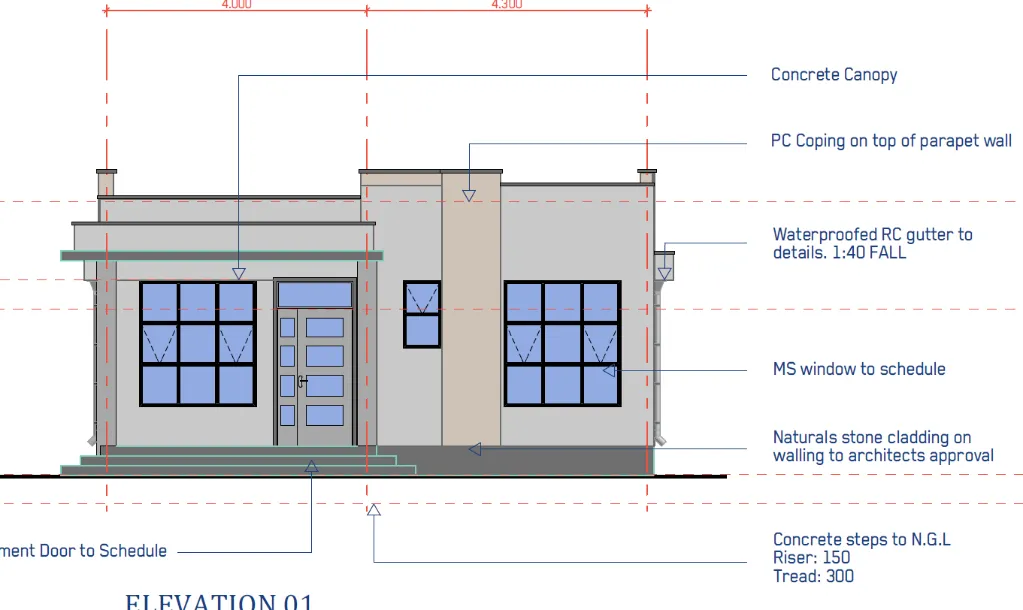

5. Exterior Elevations

6. Building Section/s

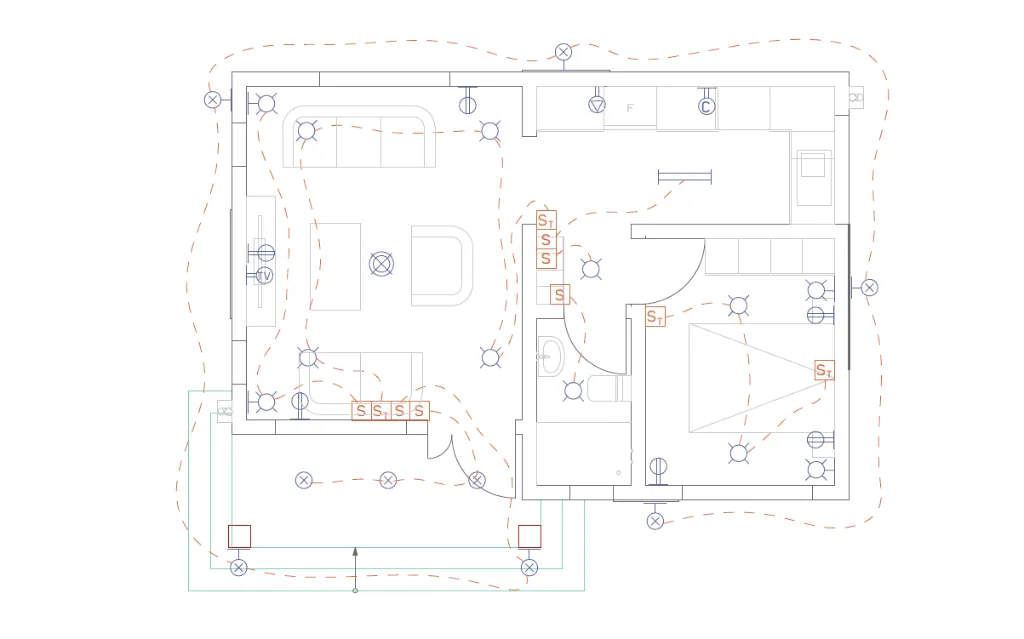

7. Electrical Layout Plan

8. Plumbing Layout Plan

9. Window Schedule

10. Door Schedule

11. Roof Detailing

12. Roof Gutter Detail

13. Roof Eave Detailing

14. Septic Tank Detail

15. Interior Finishes and Materials Schedule

16. Construction General Notes

17. Electrical Notes

18. Plumbing Notes

19. 3D Renders

What's Not Included in these Plan Set

1. Architectural and Engineering Stamps. (Counsil/county submission services).

2. Site Plan since this depends on your unique land shape and orientation.

3. Structural Calculations for your exact soil conditions and local code.

4. Detailed Bill of Quantities (BOQ) and contractor pricing.

After Purchase, What Next?

1. You’ll receive an instant download link in your account page.

2. The download contains all the listed plan drawings combined in one pdf.

3. We recommend printing the drawings in A3 sized paper for legibility.

Construction Ready Drawings

Complete Architectural Drawings ready for construction and site use.

Instant Download

Enjoy fast and Instant Download on all House Plan Orders.

Quality assured

All plans are designed by architects with real world project and site experience.

Secure payment

Your information is protected with encrypted checkout and trusted payment methods.
